Housing Suitable for 14/20/22/25mm Thickness - Direct-Pull Type
Technical Parameters of Plate Machining Type
| Longitudinal Swing Angle | Saddle Height (H) | Number of Mounting Holes | Vertical Load Capacity |
| ±15° | 165/185/200 | Universal 6-hole / 8-hole | 60000KG |
Product Features

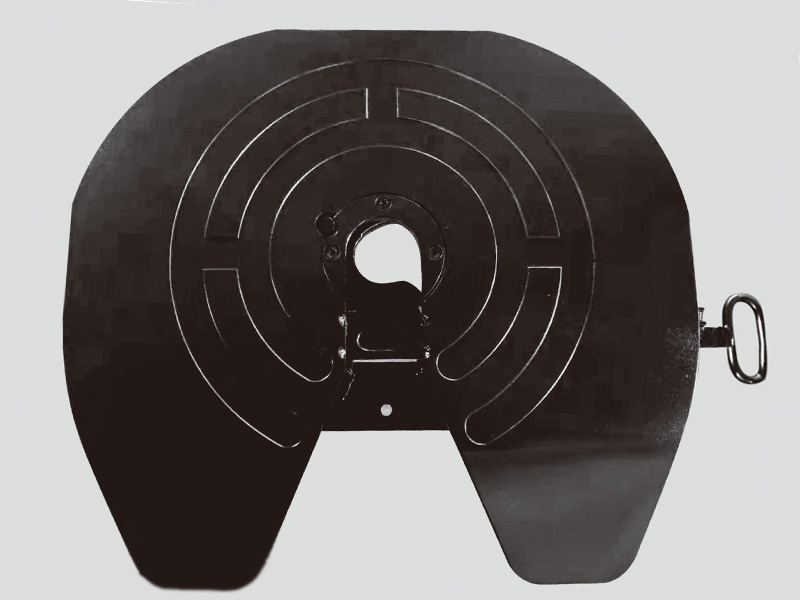

The JDT-QYZ90 6/8-hole fifth wheel housing bracket is made of high-quality national standard steel, stamped and formed by a large press, and assembled via streamlined welding. It features strong durability and safe operation. Suitable for 80-160 tonnage semi-trailers, the product has a self-weight of 235-285kg, and is machined from 14-28mm high-quality steel plates.
(The plate material for the housing bracket can be customized per client requirements)
(When attached to the front of the fifth wheel, it complies with QC/T-466-1999 standard. This product has a transverse swing angle over 5°, a longitudinal swing angle over 15°, adopts a wedge block connection structure, features flexible operation, manual separation and automatic locking.)
